Toro Tine holder storage stand



Recently on twitter I seen this . What a fantastic idea to Free up a confusing mess in parts room .It will keep it all together and organized . Original Build by @DiarmuidGriff (twitter handle )

If you have a new welder and would like a nice easy creative build this would be a nice project to do . My build was modified for what I would like to use it for but basically exact same idea as original build . Took some measurements and started welding it together .Mines about 4' high.

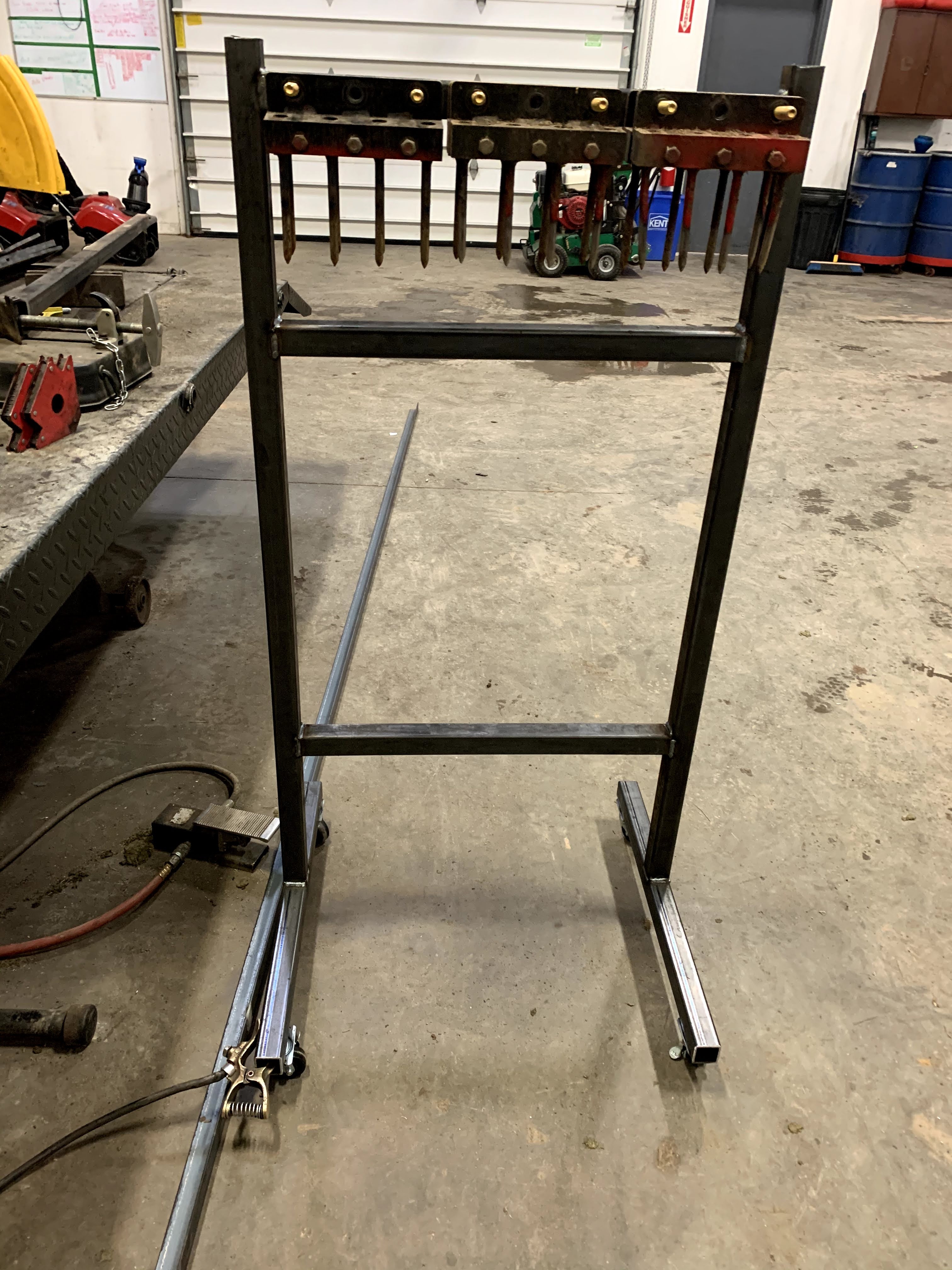

Using the block tines you can lay out the mounting bars pretty quickly . Welded in 3/4" bolts to hold tines.


Casters I just tac and weld in place .If they fail in the future I can just grind them off to replace . Cheap casters rolled well . Wasn't overly heavy.

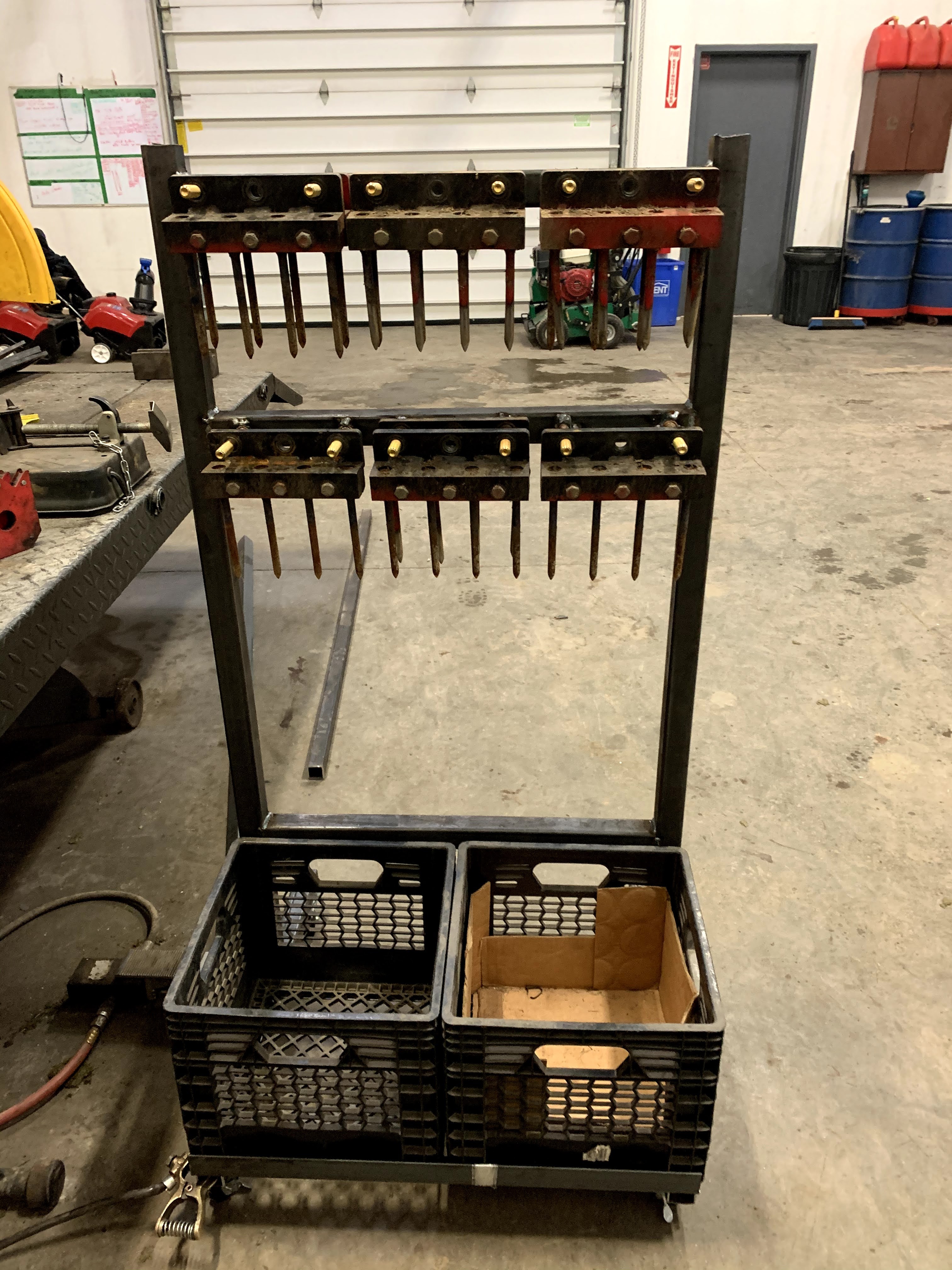

These magnets are very handy to square things up for welding . I added baskets to keep spare tines in


Paint booth lol . Hanging projects under my lift so I can paint all sides at he same time

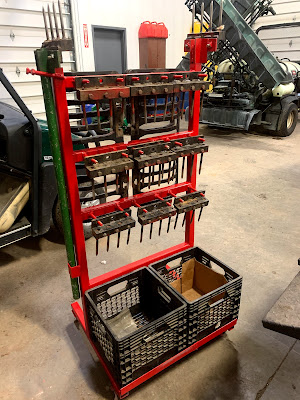

Add my hand tine bars to rack to . Also easy build . In the past I made the block end until I figured out I already had the blocks so why not just make handles for them ? Looks great . metal stock I used was 1.5" square tube stock , 3/4"x 3" bolts ,and 1.5" angle , primer paint and red paint .


A walk around . Great east Build .Well done Diarmuid .
