Monday, July 31, 2017

JD TX Park brake adjustment


Park brake adjustment .


if your lever is all the way up and you can't get it to hold you may have to adjust on the caliper.


Back cable adjuster till it's completely loose .


 Go to the rear caliper (also check pads are in spec before proceeding )
remove nut and helper spring.

Turn the actuator in the direction that brakes are applied till it stops . Reinstall arm back to the closet position towards rear of machine . Reinstall nut and spring



Go back to brake lever adjuster and adjust till it just contacts on first click . Wheels should lock up good by the 3rd click .

Sunday, July 30, 2017

Back up ball picker

Part of our job is problem solving . Last season we had an issue with the ball picker (primary old fairway unit ) of course its during the time I'm off for a my 4 day long week end vacation with my kids and grandkids .
So
The cart staff have an MDX to transport range balls . Last winter during ball picker service I ordered extra mounts to install on machine . This way if I'm not round they can drop the wings on the 5 gang picker and use the MDX .


It was an older machine and came with a push bar already so install was quick and easy . We wanted it to be safe for the staff to use on the range so was asked to build a cage for it too .
This way the range didn't have to close for picking .

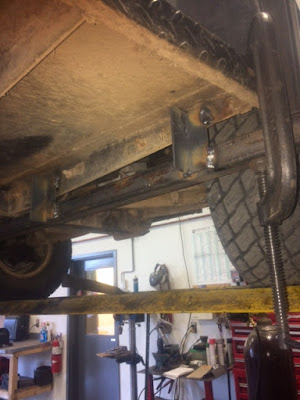

Welding up some sturdy mounts to build on .



Fair amount of work to get it to this point .


Now with a solid level base it was easy to weld the rest in place .


Lots of pics at different stages . My answer to the tailgate falling open (bumpy ride) dumping a load of range ball issue .


Filling in with 3/4 mesh .




Left a large window opening .



Built a flip up cage for when its not needed . It makes your eye go pretty buggy if you don't .


Heavy duty straps hold it in easily



Made a bracket for front screen to flip onto to keep it from bouncing around .
Save a few dollars with a plywood roof and also keeps the sun off them .

Shown here almost done . Only a removable door left and filling in a few gaps . Turned out great . Staff really like it

5800 sprayer upgrade


Recently we had issues with clogged nozzle. Usually when doing fairways and pressure is up on the auto spray . Asked Bill at Veseys to see if it possible to install a filter before the manifolds to keep debris out . I could have ordered nozzles screens but found in the past to be a tedious task to clean them all up . Figuring this location would make it a much easier . It was mention that a filter before manifold are on some of the new sprayers .


Parts are in. Very reasonably priced .


cut this section out of line


Total install time < 10 minutes . New spray tech has sprayed all his areas in the past few weeks with no spray nozzle issues .

Thursday, July 27, 2017

Shopping around Aftermarket

This is not about Toro but about the time spent looking for better deals for your club .
Just using this example . In the past many items have come up from all colors that were I find ridiculously over priced . Techs out there know what I mean .
We are Toro /JD split course and both have their ups and downs but in our area provide pretty good service and presentation  .

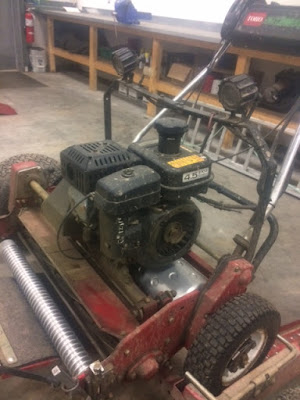

 Here is and example of what you may come across . Spiral spring for a Subaru small engine found on most Toro walkers . ( we have 11 of them )
Above on the left we have a Toro part at $66  . Upon questioning the price the dealer could get the exact product from Subaru for $35 dollars . I took a shot in the dark and ordered a rotary # for a Honda g20 engine spiral spring  for $14 dollars . Worked prefect.



Not a fan of the carburetors or pull starters on these engines .



Pulled the pull starter off the engine


Righty loosy in this case .


Installed new spring


Re assembled with a smaller size string ( suggestion on golftechs site )


Re string .



 actually starts better than the OEM and the string fully retracts now were before it would randomly stick down 4 to 5". Not just this one ALL 11 OF THEM .
$66 - $14 =$52 if I were to replace 10 more $520 .!!!! it can add up . its just a spring might not be OEM but for the price I'll take my chances . Mind you OEM is better in some cases but not this time .

Large area rotary deck wash

If your not on Twitter you are missing a lot of knowledge and helpful ideas .
Found this one day and is a great solution to getting decks clean . Simple and not expensive .

I used 1" Ipex and an elbow

I'm not going to use the valve in case the guys leave it on pressurizing hose . Find a connector to hook up to wash rack hose .


Did a quick and easy job of them . Operators are happy and so am I . No more clippings falling on me from blowing under decks when their on the lift .


Twitter find ....Nice and easy !!!
