Wiring up extra lights .

Fall is here and to take advantage of the earlier starts before Tee time we are adding extra light to give the operator a good view for mowing . Only a few key vehicles are getting them . LED was the way to go with there low amperage you can install them easily in the factory light circuit .




Both our triplexes were installed with an extra LED facing the rear of the machine .


Great viewing for the operators when backing up.


Made a light bar for smaller tractor . Power source came from the rear tail lights which has its own  20 amp circuit ,


Wires ran up inside roll bar to feed the lights.

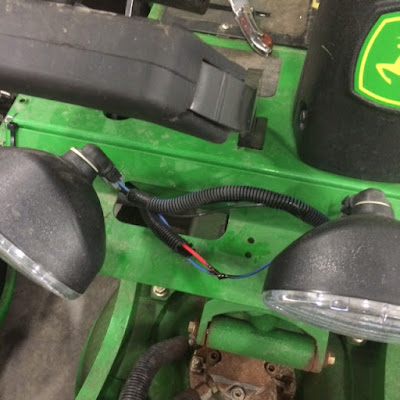

I had these halogen flood and trapezoid lights to wire in . 3 in front 1 rear . I was concerned about the amps and circuit but it works out great . Otherwise I would have had to tuck in a relay in the tail light  and run additional power source from the battery .


Rear and


Front well lit up .


Up next the 8800 rough units . These guys pretty much go non stop . The earlier they can get out the better .


First I ran 2 x 16 gauge inside 3/8 split wire loom ,then mounted lights using zip ties . Never a good idea to drill or weld on a Roll  Bar ( ROPs)


Then expose the wire where needed to attach lights .



 Not A big fan using butt joints in wiring but will use it here at the end of the run .



These joint connectors from lawsons have the heat shrink built in .


Already to tape


and tuck back into wire loom .



in the mid run section I'll cut into the sheathing in 2 places to expose the wire .


Strip up a a good inch off light wiring and wrap around like in picture above .


Using my mini torch solder the wires together with a small gauge resin solder .


First of 2 coats of liquid electrical tape. wrap with electrical tape and put back in wire loom .


Same idea for the front light .


Also used the same process to hook into OEM lights . Ground was run to a frame bolt .



Lots of rear to side lighting

 Tried it out on * rough this morning . Big improvement .
